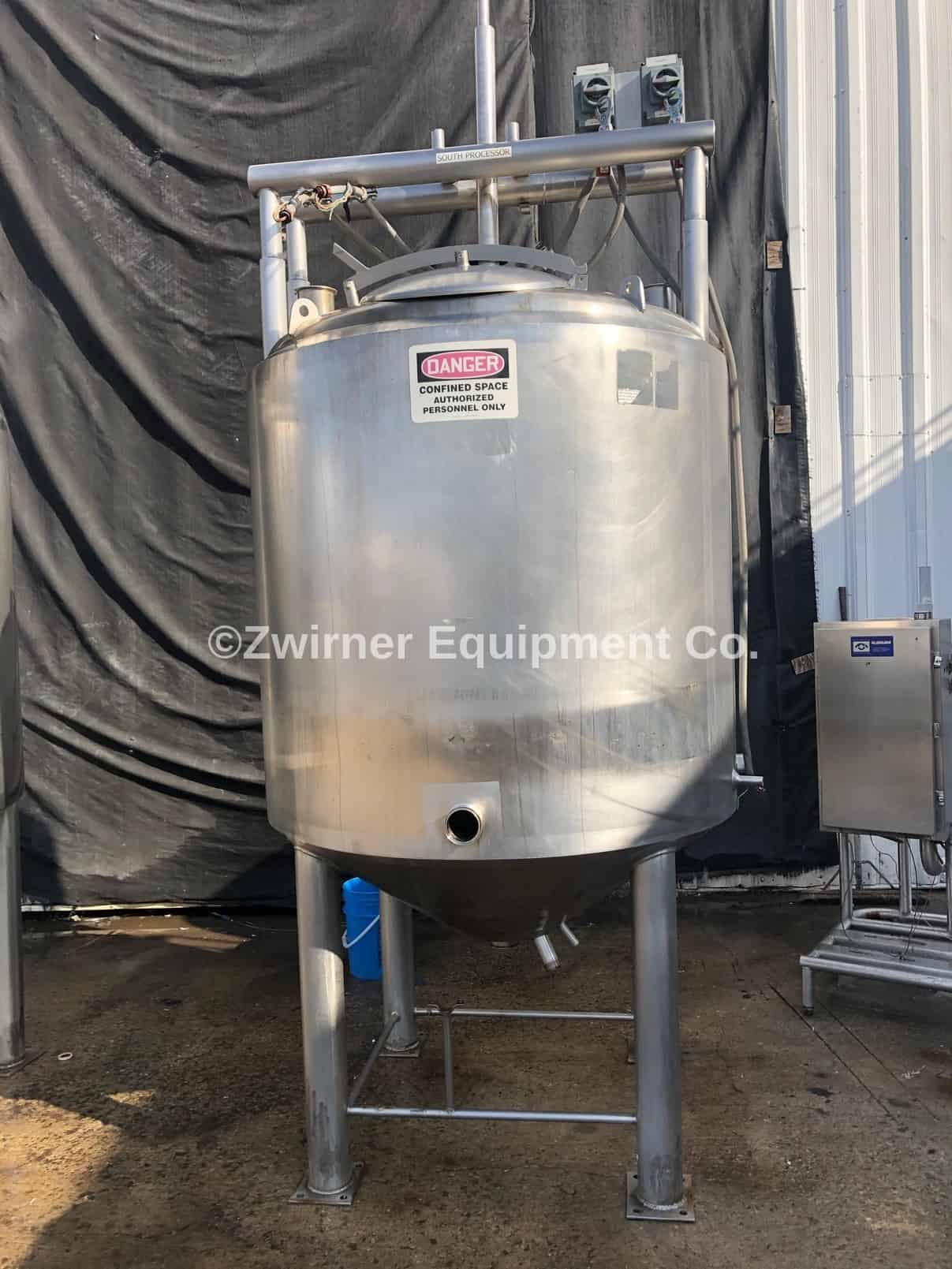

APV 400 Gallon 316L Stainless Steel Dome Top, Cone Bottom, Pressure Wall Processing Tank

SERIAL NUMBER

K-2427

AGITATION

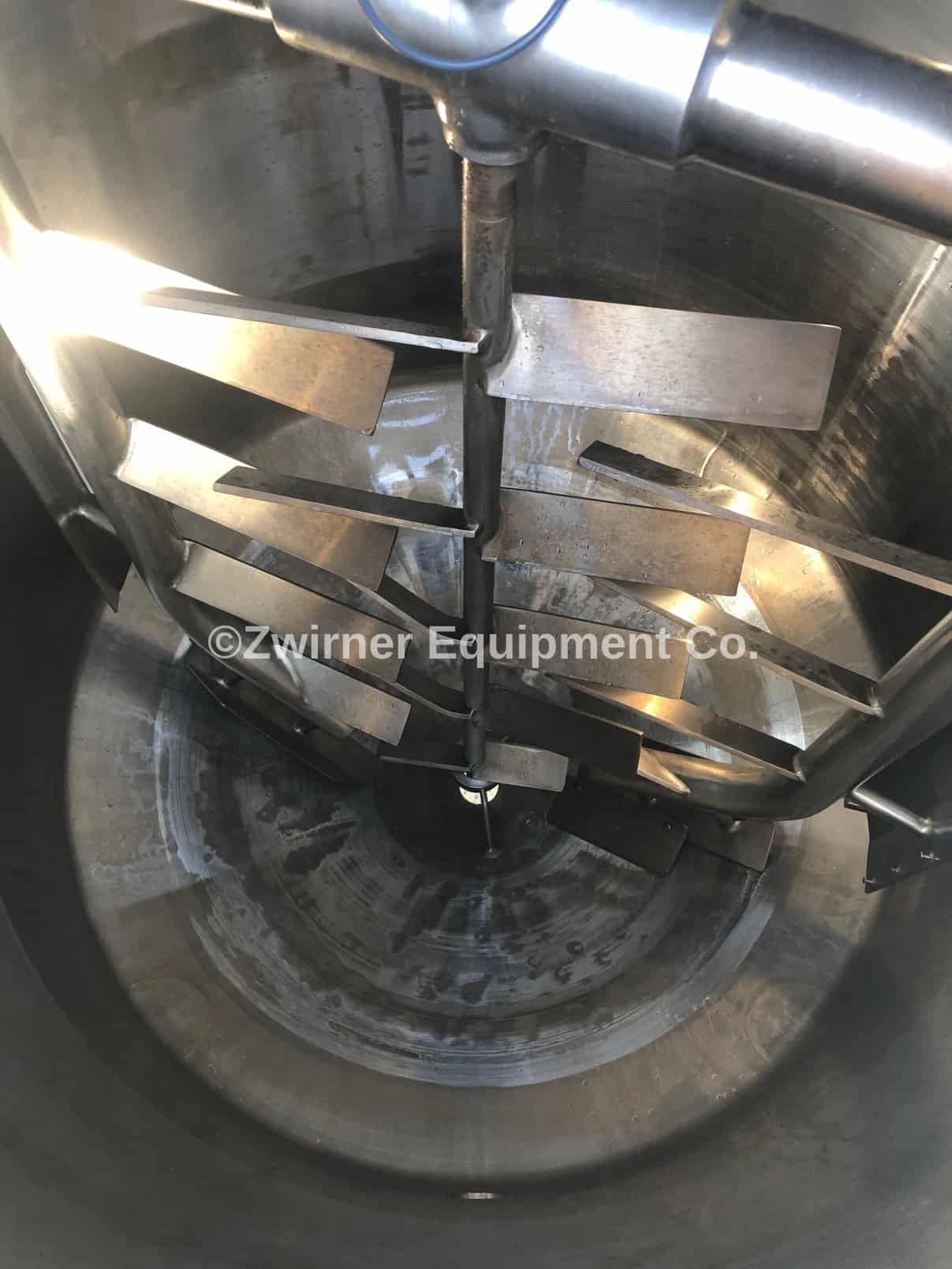

DOUBLE MOTION SCRAPER TYPE AGITATION
3HP 24 RPM & 2HP 59 RPM GEARMOTOR

CIP

SPRAYBALL

OUTLET

3" TRI-CLAMP OUTLET

HEAT EXCHANGE

26 SQ. FT. HEAT EXCHANGE SURFACE ON SIDEWALL
8.4 SQ. FT. HEAT EXCHANGE SURFACE ON CONE BOTTOM

JACKET

JACKET RATED 75 PSI @ 350°F

ADDITIONAL SPECS

TOP MANWAY
THERMOWELL
KING SHELL

DIMENSIONS

APPROX. 56" DIA X 144" HIGH
